技術參數

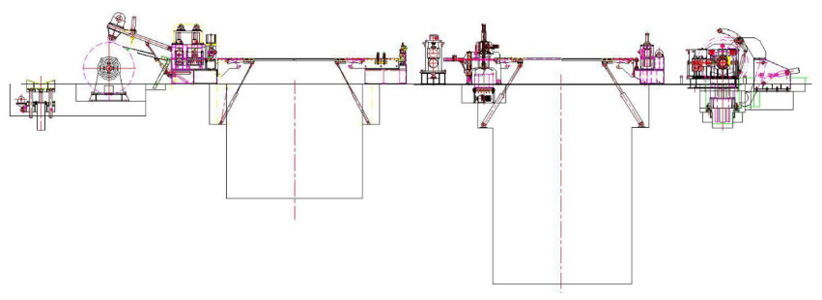

流程圖

未找到相應參數組，請于后臺屬性模板中添加

1.加工板材：適用于δb≤380Mpa 的碳鋼板

2.加工板厚：δ0.5-3mm

3.加工板寬：1500mm

4.縱剪精度：寬度允許：±0.15mm

5.分條毛刺:≤0.05板厚δ

6.邊絲寬度范圍:≥板厚δ

7.縱剪速度兩擋變速：0.5-2mm高速檔120m/min，

2-3mm底速檔70m/min

8.最小縱剪寬度：≥50mm

9.縱剪條數：δ0.3-2㎜   12條，δ3㎜   7條

10.開卷機承重：15T

11.卷板內徑:Φ508mm、Φ610mm 、Φ762mm

12.卷板外徑：≤Φ1800mm

13.縱剪刀軸直徑：Φ225mm，材質42CrMo

14.縱剪刀片：Φ225×Φ350×50mm

15.縱剪刀片材質：Cr12MoV

16.縱剪刀片硬度：HRC580-HRC600

17.收卷內徑：Φ508mm

18.設備占地面積:26m×8m
